Avantajları
- Geniş temas yüzeyi, yüksek basınç altında O-Ring deformasyonunu önler
- Yüksek akma dayanımı
- Kolay montaj yapılabilmesi
- Yüksek basınçlarda kullanılabilmesi
- Geniş ölçü yelpazesi
Uygulama Alanları
- Enjeksiyon tezgahları
- Presler
- İş makineleri
- Tarım makineleri
- Valfler

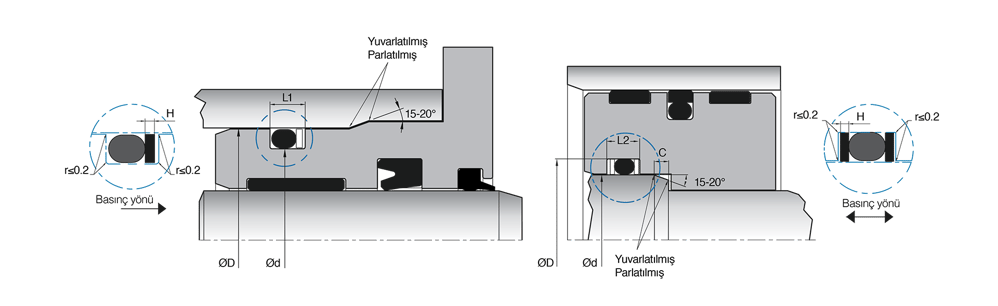

Ölçü Tablosu
62 ölçü · Kod veya ölçü ile filtreleyin
62 sonuç
| Kod | d (f8) | D (H10) | H | MALZEME | KASTAŞ KOD | Dimension | |
|---|---|---|---|---|---|---|---|
| K801-006 | 6 | 10 | 1.3 | TP5501 | 10049341 | 6X10X1,3 | — |
| K801-009 | 9 | 13 | 1.3 | TP5501 | 10047293 | 9X13X1,3 | — |
| K801-012 | 12 | 16 | 1.3 | TP5501 | 10047348 | 12X16X1,3 | — |
| K801-014 | 14 | 18 | 1.3 | TP5501 | 10047349 | 14X18X1,3 | — |
| K801-016 | 16 | 20 | 1.3 | TP5501 | 10050227 | 16X20X1,3 | — |
| K801-018 | 18 | 22 | 1.3 | TP5501 | 10048200 | 18X22X1,3 | — |
| K801-020 | 20 | 25 | 1.3 | TP5501 | 10047350 | 20X25X1,3 | — |
| K801-025 | 25 | 30 | 1.3 | TP5501 | 10048299 | 25X30X1,3 | — |
| K801-027 | 27 | 32 | 1.3 | TP5501 | 10047352 | 27X32X1,3 | — |
| K801-030 | 30 | 35 | 1.3 | TP5501 | 10047353 | 30X35X1,3 | — |
| K801-035 | 35 | 40 | 1.3 | TP5501 | 10047354 | 35X40X1,3 | — |
| K801-037 | 37 | 42 | 1.3 | TP5501 | 10048112 | 37X42X1,3 | — |
| K801-040 | 40 | 45 | 1.3 | TP5501 | 10047355 | 40X45X1,3 | — |
| K801-040/1 | 40 | 50 | 1.7 | TP5501 | 10047356 | 40X50X1,7 | — |
| K801-045 | 45 | 50 | 1.3 | TP5501 | 10047357 | 45X50X1,3 | — |
| K801-045/1 | 45 | 55 | 1.7 | TP5501 | 10047358 | 45X55X1,7 | — |
| K801-050 | 50 | 55 | 1.3 | TP5501 | 10047359 | 50X55X1,3 | — |
| K801-050/1 | 50 | 60 | 1.7 | TP5501 | 10047360 | 50X60X1,7 | — |
| K801-055 | 55 | 60 | 1.3 | TP5501 | 10047361 | 55X60X1,3 | — |
| K801-055/1 | 55 | 65 | 1.7 | TP5501 | 10047362 | 55X65X1,7 | — |
| K801-058 | 58 | 63 | 1.3 | TP5501 | 10047363 | 58X63X1,3 | — |
| K801-060 | 60 | 65 | 1.3 | TP5501 | 10047364 | 60X65X1,3 | — |
| K801-060/1 | 60 | 70 | 1.7 | TP5501 | 10047365 | 60X70X1,7 | — |
| K801-063 | 63 | 68 | 1.3 | TP5501 | 10048297 | 63X68X1,3 | — |
| K801-065 | 65 | 70 | 1.3 | TP5501 | 10047366 | 65X70X1,3 | — |
| K801-065/1 | 65 | 75 | 1.7 | TP5501 | 10047367 | 65X75X1,7 | — |
| K801-070 | 70 | 75 | 1.3 | TP5501 | 10047368 | 70X75X1,3 | — |
| K801-070/1 | 70 | 80 | 1.7 | TP5501 | 10047369 | 70X80X1,7 | — |
| K801-075 | 75 | 80 | 1.3 | TP5501 | 10047371 | 75X80X1,3 | — |
| K801-075/1 | 75 | 85 | 1.7 | TP5501 | 10047372 | 75X85X1,7 | — |
| K801-080 | 80 | 85 | 1.3 | TP5501 | 10047373 | 80X85X1,3 | — |
| K801-080/1 | 80 | 90 | 1.7 | TP5501 | 10047374 | 80X90X1,7 | — |
| K801-085 | 85 | 90 | 1.3 | TP5501 | 10047375 | 85X90X1,3 | — |
| K801-085/1 | 85 | 95 | 1.7 | TP5501 | 10047376 | 85X95X1,7 | — |
| K801-090 | 90 | 95 | 1.3 | TP5501 | 10047377 | 90X95X1,3 | — |
| K801-090/1 | 90 | 100 | 1.7 | TP5501 | 10047378 | 90X100X1,7 | — |
| K801-095 | 95 | 100 | 1.3 | TP5501 | 10047379 | 95X100X1,3 | — |
| K801-095/1 | 95 | 105 | 1.7 | TP5501 | 10047380 | 95X105X1,7 | — |
| K801-100 | 100 | 110 | 1.7 | TP5501 | 10047381 | 100X110X1,7 | — |
| K801-100/1 | 100 | 105 | 1.3 | TP5501 | 10048113 | 100X105X1,3 | — |
| K801-105 | 105 | 110 | 1.3 | TP5501 | 10047382 | 105X110X1,3 | — |
| K801-110 | 110 | 115 | 1.3 | TP5501 | 10047383 | 110X115X1,3 | — |
| K801-110/1 | 110 | 120 | 1.7 | TP5501 | 10051823 | 110X120X1,7 | — |
| K801-115 | 115 | 120 | 1.3 | TP5501 | 10047384 | 115X120X1,3 | — |
| K801-115/1 | 115 | 125 | 1.7 | TP5501 | 10047385 | 115X125X1,7 | — |
| K801-120 | 120 | 125 | 1.3 | TP5501 | 10047386 | 120X125X1,3 | — |
| K801-120/1 | 120 | 130 | 1.7 | TP5501 | 10047387 | 120X130X1,7 | — |
| K801-125 | 125 | 135 | 1.7 | TP5501 | 10047388 | 125X135X1,7 | — |
| K801-130 | 130 | 140 | 1.7 | TP5501 | 10047389 | 130X140X1,7 | — |
| K801-140 | 140 | 150 | 1.7 | TP5501 | 10048114 | 140X150X1,7 | — |
| K801-145 | 145 | 155 | 1.7 | TP5501 | 10048115 | 145X155X1,7 | — |
| K801-150 | 150 | 160 | 1.7 | TP5501 | 10048116 | 150X160X1,7 | — |
| K801-160 | 160 | 170 | 1.7 | TP5501 | 10048117 | 160X170X1,7 | — |
| K801-170 | 170 | 180 | 1.7 | TP5501 | 10048118 | 170X180X1,7 | — |
| K801-180 | 180 | 190 | 1.7 | TP5501 | 10050271 | 180X190X1,7 | — |
| K801-190 | 190 | 200 | 1.7 | TP5501 | 10048119 | 190X200X1,7 | — |
| K801-200 | 200 | 210 | 1.7 | TP5501 | 10048120 | 200X210X1,7 | — |
| K801-210 | 210 | 220 | 1.7 | TP5501 | 10049833 | 210X220X1,7 | — |
| K801-220 | 220 | 230 | 1.7 | TP5501 | 10048121 | 220X230X1,7 | — |
| K801-230 | 230 | 240 | 1.7 | TP5501 | 10048122 | 230X240X1,7 | — |
| K801-270 | 270 | 280 | 1.7 | TP5501 | 10048123 | 270X280X1,7 | — |
| K801-290 | 290 | 300 | 1.7 | TP5501 | 10048124 | 290X300X1,7 | — |
