Hidrolik Piston-Boğaz Sızdırmazlık Elemanları
K920
Piston Boğaz Keçesi
- Malzeme
- PU NBR
- Kodu
- PU9412 NB7001
- Basınç (max) bar
- 300
- Sıcaklık (max) °C
- -30/+100°C
- Kayma Hızı (max)- m/s
- 0.5
Avantajları
- Tasarımında bulunan o-ring ile düşük basınçlarda ve vakum oluşan sistemlerde güvenli kullanım
- Statik (kilitleme) ve uzun süreli duruş olan sistemlede çok iyi sızdırmazlık
- TPU nutring sayesinde yüksek aşınma dayanımı
Uygulama Alanları
- Mobil hidrolik
- İş makinaları
- Hidrolik presler
- Genel endüstriyel silindirler
- Tarım makinaları

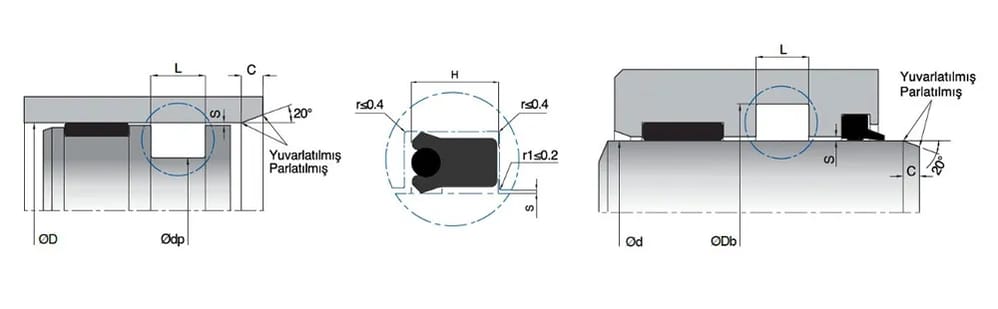

Teknik Çizim
Ölçü Tablosu
75 ölçü · Kod veya ölçü ile filtreleyin
Akma boşluğu (S) tablosu için tıklayınız
75sonuç
| Kod | d(f7) dp(h11) | Db(H10) D(H10) | L (+0.2/-0) | H | C | MALZEME | KASTAŞ KOD | |
|---|---|---|---|---|---|---|---|---|
| K920-003 | 0.125 | 0.375 | 0.276 | 0.246 | 0.138 | PU9412 S | 10054454 | — |
| K920-004 | 0.187 | 0.437 | 0.276 | 0.246 | 0.138 | PU9412 S | 10054455 | — |
| K920-006 | 0.25 | 0.5 | 0.276 | 0.246 | 0.138 | PU9412 S | 10054457 | — |
| K920-007 | 0.313 | 0.563 | 0.276 | 0.246 | 0.138 | PU9412 S | 10054460 | — |
| K920-009 | 0.375 | 0.625 | 0.276 | 0.246 | 0.138 | PU9412 S | 10054472 | — |
| K920-009/1 | 0.375 | 0.625 | 0.206 | 0.184 | 0.138 | PU9412 S | 10054475 | — |
| K920-011 | 0.437 | 0.687 | 0.276 | 0.246 | 0.138 | PU9412 S | 10054487 | — |
| K920-012 | 0.5 | 0.75 | 0.276 | 0.246 | 0.138 | PU9412 S | 10054491 | — |
| K920-014 | 0.562 | 0.812 | 0.276 | 0.246 | 0.138 | PU9412 S | 10054495 | — |
| K920-015 | 0.625 | 1 | 0.343 | 0.307 | 0.22 | PU9412 S | 10054497 | — |
| K920-015/1 | 0.625 | 0.875 | 0.206 | 0.184 | 0.138 | PU9412 S | 10054498 | — |
| K920-019 | 0.75 | 1 | 0.276 | 0.246 | 0.138 | PU9412 S | 10054503 | — |
| K920-019/1 | 0.75 | 1 | 0.206 | 0.184 | 0.138 | PU9412 S | 10054504 | — |
| K920-019/2 | 0.75 | 1 | 0.138 | 0.123 | 0.138 | PU9412 S | 10054505 | — |
| K920-022 | 0.875 | 1.125 | 0.276 | 0.246 | 0.138 | PU9412 S | 10054509 | — |
| K920-022/1 | 0.875 | 1.125 | 0.138 | 0.123 | 0.138 | PU9412 S | 10054510 | — |
| K920-025 | 1 | 1.25 | 0.276 | 0.246 | 0.138 | PU9412 S | 10054514 | — |
| K920-025/1 | 1 | 1.25 | 0.206 | 0.184 | 0.138 | PU9412 S | 10054515 | — |
| K920-025/2 | 1 | 1.25 | 0.138 | 0.123 | 0.138 | PU9412 S | 10054516 | — |
| K920-025/3 | 1 | 1.375 | 0.343 | 0.307 | 0.22 | PU9412 S | 10054517 | — |
| K920-028 | 1.125 | 1.375 | 0.276 | 0.246 | 0.138 | PU9412 S | 10054528 | — |
| K920-028/1 | 1.125 | 1.5 | 0.343 | 0.307 | 0.22 | PU9412 S | 10054529 | — |
| K920-031 | 1.25 | 1.5 | 0.276 | 0.246 | 0.138 | PU9412 S | 10054533 | — |
| K920-031/1 | 1.25 | 1.5 | 0.206 | 0.184 | 0.138 | PU9412 S | 10054534 | — |
| K920-031/2 | 1.25 | 1.625 | 0.343 | 0.307 | 0.22 | PU9412 S | 10054535 | — |
| K920-033 | 1.313 | 1.563 | 0.206 | 0.184 | 0.138 | PU9412 S | 10054544 | — |
| K920-034 | 1.375 | 1.75 | 0.343 | 0.307 | 0.22 | PU9412 S | 10054545 | — |
| K920-034/1 | 1.375 | 1.625 | 0.206 | 0.175 | 0.138 | PU9412 S | 10054547 | — |
| K920-034/2 | 1.375 | 1.625 | 0.276 | 0.246 | 0.138 | PU9412 S | 10054548 | — |
| K920-034/3 | 1.375 | 1.875 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054549 | — |
| K920-038 | 1.5 | 1.875 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054551 | — |
| K920-038/1 | 1.5 | 2 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054552 | — |
| K920-038/2 | 1.5 | 1.75 | 0.276 | 0.246 | 0.138 | PU9412 S | 10054553 | — |
| K920-038/3 | 1.5 | 1.875 | 0.206 | 0.184 | 0.22 | PU9412 S | 10054554 | — |
| K920-038/4 | 1.5 | 1.875 | 0.276 | 0.246 | 0.22 | PU9412 S | 10054555 | — |
| K920-038/5 | 1.5 | 1.875 | 0.343 | 0.307 | 0.22 | PU9412 S | 10054556 | — |
| K920-038/6 | 1.5 | 2 | 0.276 | 0.246 | 0.22 | PU9412 S | 10054557 | — |
| K920-041 | 1.625 | 2 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054563 | — |
| K920-041/1 | 1.625 | 2 | 0.343 | 0.307 | 0.22 | PU9412 S | 10054564 | — |
| K920-044 | 1.75 | 2.125 | 0.343 | 0.307 | 0.22 | PU9412 S | 10054567 | — |
| K920-044/1 | 1.75 | 2.125 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054568 | — |
| K920-044/2 | 1.75 | 2.25 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054571 | — |
| K920-047 | 1.875 | 2.25 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054572 | — |
| K920-050 | 2 | 2.5 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054574 | — |
| K920-050/1 | 2 | 2.25 | 0.206 | 0.184 | 0.138 | PU9412 S | 10054580 | — |
| K920-050/2 | 2 | 2.375 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054581 | — |
| K920-053 | 2.125 | 2.5 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054583 | — |
| K920-057 | 2.25 | 2.75 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054584 | — |
| K920-060 | 2.375 | 2.875 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054587 | — |
| K920-063 | 2.5 | 3 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054591 | — |
| K920-066 | 2.625 | 3.125 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054594 | — |
| K920-069 | 2.75 | 3.125 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054596 | — |
| K920-069/1 | 2.75 | 3.25 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054597 | — |
| K920-076 | 3 | 3.5 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054605 | — |
| K920-082 | 3.25 | 4 | 0.689 | 0.615 | 0.247 | PU9412 S | 10054608 | — |
| K920-082/1 | 3.25 | 3.75 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054609 | — |
| K920-085 | 3.375 | 4.125 | 0.689 | 0.615 | 0.247 | PU9412 S | 10054610 | — |
| K920-085/1 | 3.375 | 3.875 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054611 | — |
| K920-088 | 3.5 | 4 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054612 | — |
| K920-088/1 | 3.5 | 4.125 | 0.551 | 0.492 | 0.233 | PU9412 S | 10054613 | — |
| K920-092 | 3.625 | 4.25 | 0.551 | 0.492 | 0.233 | PU9412 S | 10054618 | — |
| K920-095 | 3.75 | 4.25 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054621 | — |
| K920-095/1 | 3.75 | 4.5 | 0.689 | 0.615 | 0.247 | PU9412 S | 10054622 | — |
| K920-101 | 4 | 4.5 | 0.604 | 0.554 | 0.22 | PU9412 S | 10054624 | — |
| K920-101/1 | 4 | 4.5 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054625 | — |
| K920-104 | 4.125 | 4.75 | 0.604 | 0.554 | 0.233 | PU9412 S | 10054627 | — |
| K920-104/1 | 4.125 | 4.625 | 0.604 | 0.554 | 0.22 | PU9412 S | 10054628 | — |
| K920-107 | 4.25 | 5 | 0.689 | 0.615 | 0.247 | PU9412 S | 10054630 | — |
| K920-107/1 | 4.25 | 4.75 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054631 | — |
| K920-114 | 4.5 | 5.25 | 0.689 | 0.615 | 0.247 | PU9412 S | 10054635 | — |
| K920-117 | 4.625 | 5.25 | 0.689 | 0.615 | 0.233 | PU9412 S | 10054639 | — |
| K920-120 | 4.75 | 5.5 | 0.689 | 0.615 | 0.247 | PU9412 S | 10054641 | — |
| K920-120/1 | 4.75 | 5.25 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054642 | — |
| K920-120/2 | 4.75 | 5.25 | 0.604 | 0.554 | 0.22 | PU9412 S | 10054643 | — |
| K920-139 | 5.5 | 6 | 0.604 | 0.554 | 0.22 | PU9412 S | 10054647 | — |
