Yataklama Elemanları
K79
Piston-Boğaz Yataklamaları
- Malzeme
- SENTETİK FİBER, POLYESTER RESİN, GRAFİT
- Kodu
- PH6503
- Sıcaklık (max) °C
- -40/+120
- Kayma Hızı (max)- m/s
- 5.0
Avantajları
- Düşük sürtünme katsayısı
- Keçe arkasında kuru ortamda çalışabilmesi
- Çalışma sıcaklık aralığında ölçü stabilizasyonunun yüksek olması
- Kolay monte edilebilmesi
- Ağır ve orta hizmet uygulamalarında kullanılabilmesi
Uygulama Alanları
- Araç üstü sektörü
- Pnömatik sistemler
- Ekskavatörler
- Presler

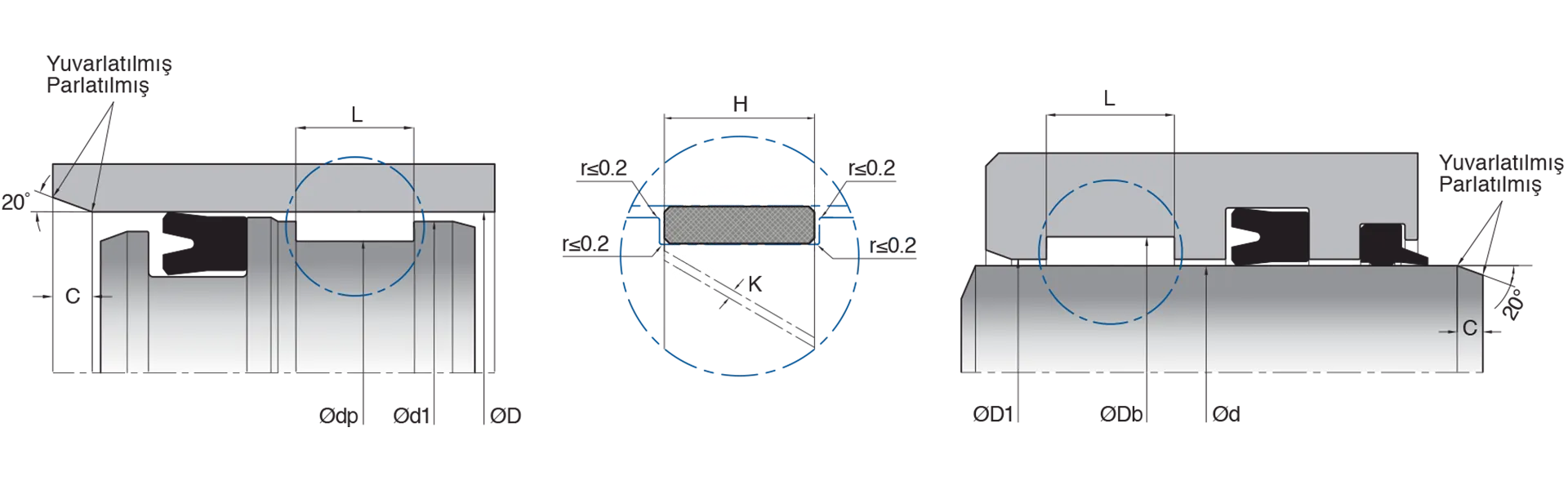

Teknik Çizim
Ölçü Tablosu
49 ölçü · Kod veya ölçü ile filtreleyin
49 sonuç
| Kod | d(f8) dp(h8) | Db(H8) D(H9) | L (+0.2/-0) | H | d1 (h9) | D1 (H9) | MALZEME | KASTAŞ KOD | |
|---|---|---|---|---|---|---|---|---|---|
| K79-017 | 17 | 20 | 4 | 3.8 | 19 | 18 | PH6503 | 20001456 | — |
| K79-020 | 20 | 24 | 5.6 | 5.4 | 23 | 21 | PH6503 | 20001458 | — |
| K79-020/1 | 20 | 24 | 9.7 | 9.5 | 23 | 21 | PH6503 | 20001459 | — |
| K79-022 | 22 | 25 | 4 | 3.8 | 24 | 23 | PH6503 | 20001461 | — |
| K79-025 | 25 | 28 | 4 | 3.8 | 27 | 26 | PH6503 | 20001462 | — |
| K79-027 | 27 | 30 | 4 | 3.8 | 29 | 28 | PH6503 | 20001463 | — |
| K79-029 | 29 | 32 | 5 | 4.8 | 31 | 30 | PH6503 | 20001464 | — |
| K79-030 | 30 | 35 | 9.7 | 9.5 | 33.2 | 31.8 | PH6503 | 20006646 | — |
| K79-032 | 32 | 35 | 5 | 4.8 | 34 | 33 | PH6503 | 20001465 | — |
| K79-035 | 35 | 40 | 9.7 | 9.5 | 38.2 | 36.8 | PH6503 | 20006647 | — |
| K79-035/1 | 35 | 40 | 15 | 14.8 | 38.2 | 36.8 | PH6503 | 20006648 | — |
| K79-037 | 37 | 40 | 5 | 4.8 | 39 | 38 | PH6503 | 20001467 | — |
| K79-040/1 | 40 | 45 | 15 | 14.8 | 43.2 | 41.8 | PH6503 | 20006649 | — |
| K79-042 | 42 | 45 | 5 | 4.8 | 44 | 43 | PH6503 | 20001468 | — |
| K79-045/1 | 45 | 50 | 9.7 | 9.5 | 48.2 | 46.8 | PH6503 | 20006650 | — |
| K79-045/2 | 45 | 50 | 15 | 14.8 | 48.2 | 46.8 | PH6503 | 20006651 | — |
| K79-046 | 46 | 50 | 9.7 | 9.5 | 49 | 47 | PH6503 | 20001470 | — |
| K79-047 | 47 | 50 | 5 | 4.8 | 49 | 48 | PH6503 | 20001471 | — |
| K79-050 | 50 | 55 | 5.6 | 5.4 | 53.2 | 51.8 | PH6503 | 20001472 | — |
| K79-050/1 | 50 | 55 | 9.7 | 9.5 | 53.2 | 51.8 | PH6503 | 20001473 | — |
| K79-050/2 | 50 | 55 | 15 | 14.8 | 53.2 | 51.8 | PH6503 | 20006652 | — |
| K79-055 | 55 | 60 | 9.7 | 9.5 | 58.2 | 56.8 | PH6503 | 20001474 | — |
| K79-055/1 | 55 | 60 | 15 | 14.8 | 58.2 | 56.8 | PH6503 | 20006653 | — |
| K79-058 | 58 | 63 | 9.7 | 9.5 | 61.2 | 59.8 | PH6503 | 20001475 | — |
| K79-060/1 | 60 | 65 | 15 | 14.8 | 63.2 | 61.8 | PH6503 | 20006654 | — |
| K79-063 | 63 | 68 | 15 | 14.8 | 66.2 | 64.8 | PH6503 | 20001477 | — |
| K79-065 | 65 | 70 | 9.7 | 9.5 | 68.2 | 66.8 | PH6503 | 20001478 | — |
| K79-065/1 | 65 | 70 | 15 | 14.8 | 68.2 | 66.8 | PH6503 | 20006655 | — |
| K79-070/1 | 70 | 75 | 15 | 14.8 | 73.2 | 71.8 | PH6503 | 20006656 | — |
| K79-075 | 75 | 80 | 9.7 | 9.5 | 78.2 | 76.8 | PH6503 | 20001479 | — |
| K79-075/1 | 75 | 80 | 5.6 | 5.4 | 78.2 | 76.8 | PH6503 | 20001480 | — |
| K79-075/2 | 75 | 80 | 15 | 14.8 | 78.2 | 76.8 | PH6503 | 20006657 | — |
| K79-080 | 80 | 85 | 9.7 | 9.5 | 83.2 | 81.8 | PH6503 | 20001481 | — |
| K79-080/1 | 80 | 85 | 15 | 14.8 | 83.2 | 81.8 | PH6503 | 20006658 | — |
| K79-085 | 85 | 90 | 15 | 14.8 | 88.2 | 86.8 | PH6503 | 20006659 | — |
| K79-090 | 90 | 95 | 15 | 14.8 | 93.2 | 91.8 | PH6503 | 20001482 | — |
| K79-090/1 | 90 | 95 | 9.7 | 9.5 | 93.2 | 91.8 | PH6503 | 20001483 | — |
| K79-095 | 95 | 100 | 9.7 | 9.5 | 98.2 | 96.8 | PH6503 | 20001484 | — |
| K79-095/1 | 95 | 100 | 15 | 14.8 | 98.2 | 96.8 | PH6503 | 20001485 | — |
| K79-100 | 100 | 105 | 9.7 | 9.5 | 103.2 | 101.8 | PH6503 | 20001486 | — |
| K79-120 | 120 | 125 | 9.7 | 9.5 | 123.2 | 121.8 | PH6503 | 20001487 | — |
| K79-125 | 125 | 130 | 15 | 14.8 | 128.2 | 126.8 | PH6503 | 20001488 | — |
| K79-130 | 130 | 135 | 15 | 14.8 | 133.2 | 131.8 | PH6503 | 20001489 | — |
| K79-155 | 155 | 160 | 15 | 14.8 | 158.2 | 156.8 | PH6503 | 20001490 | — |
| K79-160 | 160 | 165 | 15 | 14.8 | 163.2 | 161.8 | PH6503 | 20001491 | — |
| K79-195 | 195 | 200 | 15 | 14.8 | 198.2 | 196.8 | PH6503 | 20001492 | — |
| K79-245 | 245 | 250 | 15 | 14.8 | 248.2 | 246.8 | PH6503 | 20001493 | — |
| K79-315 | 315 | 320 | 15 | 14.8 | 318.2 | 316.8 | PH6503 | 20001494 | — |
| K79-315/1 | 315 | 320 | 9.7 | 9.5 | 318.2 | 316.8 | PH6503 | 20001495 | — |
