Hidrolik Piston-Boğaz Sızdırmazlık Elemanları
K95
Piston Boğaz Keçesi
- Malzeme
- NBR
- Kodu
- NB9001
- Basınç (max) bar
- 150
- Sıcaklık (max) °C
- -30/+105
- Kayma Hızı (max)- m/s
- 0.5
Avantajları
- Geniş standart ürün yelpazesinin olması
- Kapalı kanal kolay monte edilebilmesi
- Hidrolik silindirler için tasarlanmış olmasına rağmen özel uygulamalarda pnömatrik silindirlerde de kullanılabilmesi
- Basit kanal tasarımı
- Ekonomik çözüm sunması
Uygulama Alanları
- Forkliftler
- Enjeksiyon tezgahları
- Tarım makineleri sektörü
- Standart hidrolik silindirler

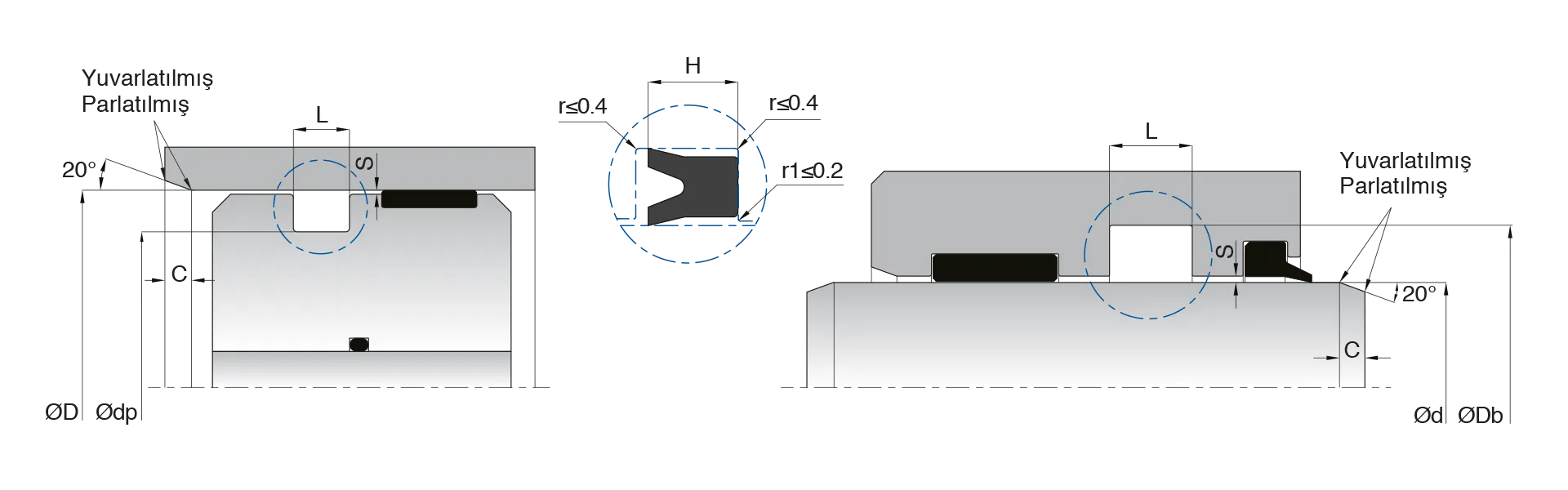

Teknik Çizim
Ölçü Tablosu
101 ölçü · Kod veya ölçü ile filtreleyin
101 sonuç
| Kod | d(f7) dp(h11) | Db(H11) D(H11) | L (+0.2/-0) | H | C | MALZEME | KASTAŞ KOD | |
|---|---|---|---|---|---|---|---|---|
| K95-003 | 3 | 7 | 6 | 5 | 3 | NB9001 | 10029559 | — |
| K95-007/1 | 0,313 | 0,5 | 0,157 | 0,14 | 0,1 | NB9001 | 10029576 | — |
| K95-004 | 4 | 10 | 4.5 | 4 | 3 | NB9001 | 10029562 | — |
| K95-012/7 | 0,492 | 0,799 | 0,157 | 0,14 | 0,2 | NB9001 | 10029612 | — |
| K95-005 | 5 | 12 | 6 | 5 | 3 | NB9001 | 10029564 | — |
| K95-082 | 3,25 | 3,75 | 0,414 | 0,37 | 0,2 | NB9001 | 10029710 | — |
| K95-006 | 6 | 12 | 4.5 | 4 | 3 | NB9001 | 10029565 | — |
| K95-006/1 | 6 | 15 | 6 | 5 | 4 | NB9001 | 10029567 | — |
| K95-006/3 | 6 | 16 | 7 | 6 | 4.5 | NB9001 | 10029570 | — |
| K95-006/5 | 6.45 | 13 | 4.9 | 4.4 | 3 | NB9001 | 10029573 | — |
| K95-007 | 7 | 15 | 6 | 5 | 4 | NB9001 | 10029575 | — |
| K95-008 | 8 | 14 | 4.5 | 4 | 3 | NB9001 | 10029577 | — |
| K95-008/1 | 8 | 14.2 | 4 | 3.5 | 3 | NB9001 | 10029580 | — |
| K95-008/2 | 8 | 16 | 4 | 3.5 | 4 | NB9001 | 10029581 | — |
| K95-008/3 | 8 | 16 | 4.7 | 4.2 | 4 | NB9001 | 10029582 | — |
| K95-008/4 | 8 | 12 | 4.5 | 4 | 2 | NB9001 | 10029583 | — |
| K95-010 | 10 | 14 | 2.5 | 2 | 2 | NB9001 | 10029584 | — |
| K95-010/1 | 10 | 16 | 4.5 | 4 | 3 | NB9001 | 10029586 | — |
| K95-010/3 | 10 | 18 | 6 | 5 | 4 | NB9001 | 10029591 | — |
| K95-010/4 | 10 | 22 | 7 | 6 | 5 | NB9001 | 10029593 | — |
| K95-010/5 | 10 | 19 | 4 | 3.5 | 4 | NB9001 | 10029594 | — |
| K95-010/6 | 10 | 20 | 4 | 3.5 | 4.5 | NB9001 | 10029595 | — |
| K95-010/7 | 10 | 23 | 5 | 4.5 | 5 | NB9001 | 10029596 | — |
| K95-010/8 | 10 | 15 | 6 | 5 | 3 | NB9001 | 10029597 | — |
| K95-010/9 | 10 | 14 | 5 | 4.5 | 2 | NB9001 | 10029598 | — |
| K95-012 | 12 | 18 | 4.5 | 4 | 3 | NB9001 | 10029601 | — |
| K95-012/1 | 12 | 20 | 6.5 | 5.5 | 4 | NB9001 | 10029605 | — |
| K95-012/3 | 12 | 22 | 6 | 5 | 4.5 | NB9001 | 10029606 | — |
| K95-012/4 | 12 | 24 | 7 | 6 | 5 | NB9001 | 10029608 | — |
| K95-012/5 | 12.5 | 23 | 4 | 3.5 | 4.5 | NB9001 | 10029609 | — |
| K95-012/6 | 12.5 | 20 | 5 | 4.5 | 4 | NB9001 | 10029610 | — |
| K95-014 | 14 | 20 | 4.5 | 4 | 3 | NB9001 | 10029613 | — |
| K95-014/1 | 14 | 20 | 5.3 | 4.8 | 3 | NB9001 | 10029615 | — |
| K95-014/2 | 14 | 25 | 4 | 3.5 | 4.5 | NB9001 | 10029618 | — |
| K95-015 | 15 | 22 | 4.5 | 4 | 3 | NB9001 | 10029619 | — |
| K95-015/1 | 15 | 24 | 8 | 7 | 4 | NB9001 | 10029620 | — |
| K95-015/2 | 15 | 25 | 7 | 6 | 4.5 | NB9001 | 10029621 | — |
| K95-016 | 16 | 22 | 4.5 | 4 | 3 | NB9001 | 10029623 | — |
| K95-016/1 | 16 | 22 | 7 | 6 | 3 | NB9001 | 10029625 | — |
| K95-016/2 | 16 | 25 | 6 | 5 | 4 | NB9001 | 10029626 | — |
| K95-016/3 | 16 | 26 | 6 | 5 | 4.5 | NB9001 | 10029627 | — |
| K95-018 | 18 | 26 | 4.5 | 4 | 4 | NB9001 | 10029630 | — |
| K95-018/1 | 18 | 24 | 4.5 | 4 | 3 | NB9001 | 10029631 | — |
| K95-018/2 | 18 | 25 | 4.5 | 4 | 3 | NB9001 | 10029632 | — |
| K95-020 | 20 | 28 | 4.5 | 4 | 4 | NB9001 | 10029633 | — |
| K95-020/1 | 20 | 28 | 9 | 8 | 4 | NB9001 | 10029636 | — |
| K95-020/3 | 20 | 30 | 9 | 8 | 4.5 | NB9001 | 10029638 | — |
| K95-020/5 | 20 | 35 | 11 | 10 | 5.5 | NB9001 | 10029640 | — |
| K95-020/6 | 20 | 32 | 8.5 | 7.5 | 5 | NB9001 | 10029641 | — |
| K95-022 | 22 | 30 | 7 | 6 | 4 | NB9001 | 10029642 | — |
| K95-022/1 | 22 | 35 | 8 | 7 | 5 | NB9001 | 10029643 | — |
| K95-022/2 | 22 | 32 | 6 | 5 | 4.5 | NB9001 | 10029644 | — |
| K95-022/3 | 22 | 28 | 6 | 5 | 3 | NB9001 | 10029646 | — |
| K95-024 | 24 | 30 | 6 | 5 | 3 | NB9001 | 10029648 | — |
| K95-024/1 | 24 | 32 | 4.5 | 4 | 4 | NB9001 | 10029650 | — |
| K95-024/2 | 24 | 34 | 6 | 5 | 4.5 | NB9001 | 10029651 | — |
| K95-024/3 | 24.5 | 32 | 6 | 5 | 4 | NB9001 | 10029652 | — |
| K95-025 | 25 | 33 | 8 | 7 | 4 | NB9001 | 10029653 | — |
| K95-025/1 | 25 | 40 | 7 | 6 | 5.5 | NB9001 | 10029655 | — |
| K95-027 | 27 | 36 | 7 | 6 | 4 | NB9001 | 10029657 | — |
| K95-028 | 28 | 38 | 6 | 5 | 4.5 | NB9001 | 10029658 | — |
| K95-028/2 | 28 | 52 | 11 | 10 | 7 | NB9001 | 10029660 | — |
| K95-029 | 29 | 35 | 7 | 6 | 3 | NB9001 | 10029662 | — |
| K95-030 | 30 | 40 | 10 | 9 | 4.5 | NB9001 | 10029664 | — |
| K95-030/1 | 30 | 45 | 11 | 10 | 5.5 | NB9001 | 10029665 | — |
| K95-030/2 | 30 | 55 | 13 | 12 | 7 | NB9001 | 10029666 | — |
| K95-032 | 32 | 42 | 9 | 8 | 4.5 | NB9001 | 10029667 | — |
| K95-032/1 | 32 | 40 | 8 | 7 | 4 | NB9001 | 10029668 | — |
| K95-032/2 | 32 | 48 | 9 | 8 | 5.5 | NB9001 | 10029670 | — |
| K95-032/3 | 32 | 40 | 4.5 | 4 | 4.5 | NB9001 | 10029671 | — |
| K95-033 | 33 | 42 | 8 | 7 | 4 | NB9001 | 10029672 | — |
| K95-035 | 35 | 45 | 6 | 5 | 4.5 | NB9001 | 10029673 | — |
| K95-035/1 | 35 | 45 | 7 | 6 | 4.5 | NB9001 | 10029675 | — |
| K95-035/2 | 35 | 42 | 6.3 | 5.3 | 4.5 | NB9001 | 10029676 | — |
| K95-040 | 40 | 50 | 6 | 5 | 4.5 | NB9001 | 10029677 | — |
| K95-040/1 | 40 | 60 | 11 | 10 | 7 | NB9001 | 10029679 | — |
| K95-040/2 | 40 | 48 | 9 | 8 | 4 | NB9001 | 10029680 | — |
| K95-046 | 46 | 70 | 13 | 12 | 7 | NB9001 | 10029685 | — |
| K95-048 | 48 | 60 | 7 | 6 | 5 | NB9001 | 10029686 | — |
| K95-048/1 | 48 | 60 | 8 | 7 | 5 | NB9001 | 10029688 | — |
| K95-050 | 50 | 80 | 16 | 15 | 8 | NB9001 | 10029689 | — |
| K95-050/1 | 50 | 75 | 13 | 12 | 7 | NB9001 | 10029690 | — |
| K95-055 | 55 | 70 | 11 | 10 | 5.5 | NB9001 | 10029691 | — |
| K95-058 | 58 | 70 | 7 | 6 | 5 | NB9001 | 10029692 | — |
| K95-060 | 60 | 100 | 21 | 20 | 10 | NB9001 | 10029693 | — |
| K95-061 | 61 | 73 | 7 | 6 | 5 | NB9001 | 10029694 | — |
| K95-062 | 62 | 86 | 13 | 12 | 7 | NB9001 | 10029695 | — |
| K95-062/1 | 62 | 72 | 6 | 5 | 4.5 | NB9001 | 10029696 | — |
| K95-064 | 64 | 80 | 9 | 8 | 5.5 | NB9001 | 10029697 | — |
| K95-072 | 72 | 84 | 9 | 8 | 5 | NB9001 | 10029701 | — |
| K95-072/1 | 72 | 84 | 7 | 6 | 5 | NB9001 | 10029702 | — |
| K95-072/2 | 72 | 82 | 6 | 5 | 4.5 | NB9001 | 10029703 | — |
| K95-075 | 75 | 100 | 13 | 12 | 7 | NB9001 | 10029705 | — |
| K95-075/1 | 75 | 90 | 8.5 | 7.5 | 5.5 | NB9001 | 10029706 | — |
| K95-078 | 78 | 86 | 9 | 8 | 4 | NB9001 | 10029707 | — |
| K95-080 | 80 | 100 | 11 | 10 | 7 | NB9001 | 10029708 | — |
| K95-130 | 130 | 150 | 11 | 10 | 7 | NB9001 | 10029713 | — |
| K95-135 | 135 | 150 | 11 | 10 | 5.5 | NB9001 | 10029715 | — |
| K95-220 | 220 | 250 | 16 | 15 | 7.5 | NB9001 | 10029717 | — |
| K95-230 | 230 | 270 | 21 | 20 | 10 | NB9001 | 10029718 | — |
| K95-290 | 290 | 330 | 21 | 20 | 10 | NB9001 | 10029719 | — |
