Hidrolik Boğaz Sızdırmazlık Elemanları
K01
Boğaz Packingi
- Malzeme
- NBR BEZLİ NBR POM
- Kodu
- NB9001 FB8001 PM9903 FB9001
- Basınç (max) bar
- 400
- Sıcaklık (max) °C
- -30/+100
- Kayma Hızı (max)- m/s
- 0.5
Avantajları
- Parçalı tip boğaz kanalı tasarımından dolayı ayarlanabilir keçe kanalı yüksekliği
- Çalışma yüzeyindeki bölgesel bozuklukları çok dudaklı yapısıyla absorbe edebilmesi
- Zor koşullarda çalışabilmesi
- Çabuk montaj ve demontaj yapılabilmesi
- Uzun kullanım süresi
- Sürekli çalışan sistemlerde bakıma kadar ayarlanabilir kanalı sayesinde çalışabilmesi
- Hem yüksek hem de düşük basınçta çok iyi sızdırmazlık sağlaması
Uygulama Alanları
- Demir çelik sektörü
- Marin sektörü
- Presler
- Ağır hizmet silindirleri
- Maden sektörü

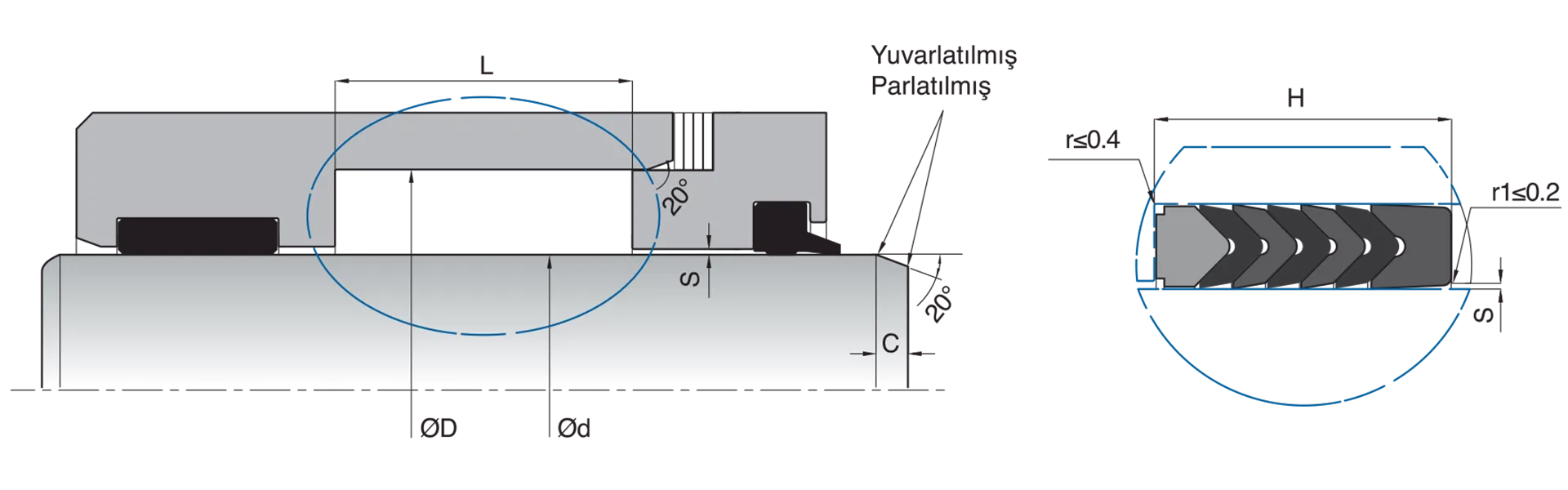

Teknik Çizim
Ölçü Tablosu
127 ölçü · Kod veya ölçü ile filtreleyin
Akma boşluğu (S) tablosu için tıklayınız
127 sonuç
| Kod | d (f8) | D (H9) | L (+0.2/-0) | H | Et Kalınlığı | E | C | MALZEME | KASTAŞ KOD | |
|---|---|---|---|---|---|---|---|---|---|---|
| K01-008 | 8 | 18 | 18.5 | 18.5 | 5 | 2.5 | 3 | FB8001 | 10000064 | — |
| K01-010 | 10 | 20 | 18.5 | 18.5 | 5 | 2.5 | 3 | FB8001 | 10000065 | — |
| K01-012 | 12 | 22 | 18.5 | 18.5 | 5 | 2.5 | 3 | FB8001 | 10000068 | — |
| K01-013 | 13.5 | 25 | 16.5 | 16.5 | 5.75 | - | 3 | FB8001 | 10000070 | — |
| K01-014 | 14 | 24 | 18.5 | 18.5 | 5 | 2.5 | 3 | FB8001 | 10000071 | — |
| K01-015 | 15 | 25 | 18.5 | 18.5 | 5 | 2.5 | 3 | FB8001 | 10000074 | — |
| K01-015/1 | 15 | 32 | 25 | 25 | 8.5 | - | 3 | FB8001 | 10000075 | — |
| K01-016 | 16 | 26 | 18.5 | 18.5 | 5 | 2.5 | 3 | FB8001 | 10000076 | — |
| K01-018 | 18 | 28 | 18.5 | 18.5 | 5 | 2.5 | 3 | FB8001 | 10000080 | — |
| K01-018/1 | 18 | 32 | 23.5 | 23.5 | 7 | - | 3 | FB8001 | 10000082 | — |
| K01-020 | 20 | 30 | 18.5 | 18.5 | 5 | 2.5 | 3 | FB8001 | 10000085 | — |
| K01-020/1 | 20 | 32 | 22.5 | 22.5 | 6 | 3 | 5 | FB8001 | 10000089 | — |
| K01-022 | 22 | 32 | 18.5 | 18.5 | 5 | 2.5 | 3 | FB8001 | 10000094 | — |
| K01-022/1 | 22 | 34 | 22.5 | 22.5 | 6 | 3 | 5 | FB8001 | 10000101 | — |
| K01-025 | 25 | 37 | 22.5 | 22.5 | 6 | 3 | 5 | FB8001 | 10000105 | — |
| K01-025/1 | 25 | 40 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB8001 | 10000107 | — |
| K01-028 | 28 | 40 | 22.5 | 22.5 | 6 | 3 | 5 | FB8001 | 10000111 | — |
| K01-028/1 | 28 | 43 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB8001 | 10000114 | — |
| K01-030 | 30 | 42 | 22.5 | 22.5 | 6 | 3 | 5 | FB8001 | 10000116 | — |
| K01-030/1 | 30 | 45 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB8001 | 10000120 | — |
| K01-030/2 | 30 | 50 | 37 | 37 | 10 | - | 5 | FB8001 | 10000122 | — |
| K01-032 | 32 | 44 | 22.5 | 22.5 | 6 | 3 | 5 | FB8001 | 10000124 | — |
| K01-032/1 | 32 | 47 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB8001 | 10000129 | — |
| K01-032/2 | 32 | 45 | 22.5 | 22.5 | 6.5 | 3 | 5 | FB8001 | 10000132 | — |
| K01-035 | 35 | 47 | 22.5 | 22.5 | 6 | 3 | 5 | FB8001 | 10000133 | — |
| K01-035/1 | 35 | 50 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB8001 | 10000137 | — |
| K01-036 | 36 | 48 | 22.5 | 22.5 | 6 | 3 | 5 | FB8001 | 10000142 | — |
| K01-036/1 | 36 | 51 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB8001 | 10000144 | — |
| K01-040 | 40 | 52 | 22.5 | 22.5 | 6 | 3 | 5 | FB8001 | 10000146 | — |
| K01-040/1 | 40 | 55 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB8001 | 10000151 | — |
| K01-040/2 | 40 | 55 | 25 | 25 | 7.5 | - | 5 | FB8001 | 10000154 | — |
| K01-040/3 | 40 | 56 | 22.5 | 22.5 | 8 | 3 | 5 | FB8001 | 10000155 | — |
| K01-042 | 42 | 54 | 22.5 | 22.5 | 6 | 3 | 5 | FB8001 | 10000157 | — |
| K01-042/1 | 42 | 57 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB8001 | 10000158 | — |
| K01-045 | 45 | 60 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB8001 | 10000159 | — |
| K01-045/1 | 45 | 65 | 22.5 | 22.5 | 10 | 4 | 5 | FB8001 | 10000169 | — |
| K01-045/2 | 45 | 55 | 22 | 22 | 5 | - | 5 | FB8001 | 10000178 | — |
| K01-045/3 | 45 | 62 | 26 | 26 | 8.5 | - | 5 | FB8001 | 10000183 | — |
| K01-047 | 47 | 65 | 33 | 33 | 9 | - | 5 | FB8001 | 10000184 | — |
| K01-048 | 48 | 63 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB8001 | 10000185 | — |
| K01-050 | 50 | 65 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB8001 | 10000186 | — |
| K01-050/1 | 50 | 70 | 30 | 30 | 10 | 4 | 5 | FB8001 | 10000192 | — |
| K01-055 | 55 | 70 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB8001 | 10000197 | — |
| K01-055/1 | 55 | 75 | 30 | 30 | 10 | 4 | 5 | FB8001 | 10000201 | — |
| K01-055/2 | 55 | 67 | 24 | 24 | 6 | 3 | 5 | FB8001 | 10000209 | — |
| K01-056 | 56 | 71 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB8001 | 10000212 | — |
| K01-056/1 | 56 | 76 | 37 | 37 | 10 | 5 | 5 | FB8001 | 10000219 | — |
| K01-056/2 | 56 | 72 | 46 | 46 | 8 | 6 | 5 | FB8001 | 10000221 | — |
| K01-060 | 60 | 75 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB8001 | 10000223 | — |
| K01-060/1 | 60 | 80 | 37 | 37 | 10 | 5 | 5 | FB8001 | 10000229 | — |
| K01-060/3 | 60 | 85 | 37 | 37 | 12.5 | 5 | 7.5 | FB8001 | 10000234 | — |
| K01-063 | 63 | 78 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB8001 | 10000236 | — |
| K01-063/1 | 63 | 83 | 37 | 37 | 10 | 5 | 5 | FB8001 | 10000241 | — |
| K01-063/2 | 63.5 | 78 | 40 | 40 | 7.25 | - | 5 | FB8001 | 10000244 | — |
| K01-065 | 65 | 80 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB8001 | 10000245 | — |
| K01-065/1 | 65 | 85 | 40 | 40 | 10 | 5 | 5 | FB8001 | 10000250 | — |
| K01-070 | 70 | 85 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB8001 | 10000252 | — |
| K01-070/1 | 70 | 90 | 40 | 40 | 10 | 5 | 5 | FB8001 | 10000262 | — |
| K01-075 | 75 | 90 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB8001 | 10000270 | — |
| K01-075/1 | 75 | 95 | 40 | 40 | 10 | 5 | 5 | FB8001 | 10000275 | — |
| K01-075/2 | 75 | 87 | 25 | 25 | 6 | 3 | 5 | FB8001 | 10000278 | — |
| K01-075/3 | 75 | 100 | 34 | 34 | 12.5 | 4 | 7.5 | FB8001 | 10000279 | — |
| K01-078 | 78 | 100 | 35 | 35 | 11 | - | 7.5 | FB8001 | 10000283 | — |
| K01-080 | 80 | 95 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB8001 | 10000284 | — |
| K01-080/1 | 80 | 100 | 40 | 40 | 10 | 5 | 5 | FB8001 | 10000293 | — |
| K01-085 | 85 | 100 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB8001 | 10000302 | — |
| K01-085/1 | 85 | 105 | 40 | 40 | 10 | 5 | 5 | FB8001 | 10000306 | — |
| K01-085/2 | 85 | 95 | 22.5 | 22.5 | 5 | 3 | 3 | FB8001 | 10000308 | — |
| K01-090 | 90 | 105 | 22.5 | 22.5 | 7.5 | 3 | 5 | FB8001 | 10000309 | — |
| K01-090/1 | 90 | 110 | 40 | 40 | 10 | 5 | 5 | FB8001 | 10000317 | — |
| K01-090/2 | 90 | 110 | 26 | 26 | 10 | - | 5 | FB8001 | 10000323 | — |
| K01-090/3 | 90 | 110 | 22.5 | 22.5 | 10 | - | 5 | FB8001 | 10000326 | — |
| K01-095 | 95 | 120 | 50 | 50 | 12.5 | - | 7.5 | FB8001 | 10000328 | — |
| K01-100 | 100 | 115 | 30 | 30 | 7.5 | 4 | 5 | FB8001 | 10000331 | — |
| K01-100/1 | 100 | 120 | 40 | 40 | 10 | 5 | 5 | FB8001 | 10000336 | — |
| K01-105 | 105 | 120 | 30 | 30 | 7.5 | 4 | 5 | FB8001 | 10000344 | — |
| K01-105/1 | 105 | 125 | 40 | 40 | 10 | 5 | 5 | FB8001 | 10000346 | — |
| K01-105/2 | 105 | 130 | 40 | 40 | 12.5 | - | 7.5 | FB8001 | 10000348 | — |
| K01-110 | 110 | 125 | 30 | 30 | 7.5 | 4 | 5 | FB8001 | 10000349 | — |
| K01-110/1 | 110 | 130 | 40 | 40 | 10 | 5 | 5 | FB8001 | 10000359 | — |
| K01-115 | 115 | 130 | 30 | 30 | 7.5 | 4 | 5 | FB8001 | 10000363 | — |
| K01-115/1 | 115 | 140 | 46 | 46 | 12.5 | 6 | 7.5 | FB8001 | 10000365 | — |
| K01-115/2 | 115 | 135 | 30 | 30 | 10 | 3.5 | 5 | FB8001 | 10000368 | — |
| K01-120 | 120 | 140 | 49 | 49 | 10 | 6.5 | 5 | FB8001 | 10000369 | — |
| K01-120/1 | 120 | 145 | 46 | 46 | 12.5 | 6 | 7.5 | FB8001 | 10000371 | — |
| K01-125 | 125 | 140 | 34 | 34 | 7.5 | 5 | 5 | FB8001 | 10000375 | — |
| K01-125/1 | 125 | 150 | 46 | 46 | 12.5 | 6 | 7.5 | FB8001 | 10000378 | — |
| K01-130 | 130 | 155 | 42.5 | 42.5 | 12.5 | - | 7.5 | FB8001 | 10000385 | — |
| K01-135 | 135 | 160 | 55 | 55 | 12.5 | 6 | 7.5 | FB8001 | 10000387 | — |
| K01-135/1 | 135 | 160 | 40 | 40 | 12.5 | - | 7.5 | FB8001 | 10000389 | — |
| K01-140 | 140 | 155 | 34 | 34 | 7.5 | 4.5 | 7.5 | FB8001 | 10000390 | — |
| K01-140/1 | 140 | 165 | 46 | 46 | 12.5 | 6 | 7.5 | FB8001 | 10000395 | — |
| K01-140/2 | 140 | 160 | 32 | 32 | 10 | 4 | 5 | FB8001 | 10000400 | — |
| K01-140/3 | 140 | 170 | 60 | 60 | 15 | 7.5 | 7.5 | FB8001 | 10000406 | — |
| K01-150 | 150 | 170 | 40 | 40 | 10 | 5 | 5 | FB8001 | 10000407 | — |
| K01-150/1 | 150 | 180 | 60 | 60 | 15 | 7.5 | 7.5 | FB8001 | 10000415 | — |
| K01-160 | 160 | 180 | 40 | 40 | 10 | 5 | 7.5 | FB8001 | 10000419 | — |
| K01-160/1 | 160 | 190 | 60 | 60 | 15 | 7.5 | 7.5 | FB8001 | 10000424 | — |
| K01-160/2 | 160 | 175 | 34 | 34 | 7.5 | 3.5 | 5 | FB8001 | 10000428 | — |
| K01-165 | 165 | 195 | 50.5 | 50.5 | 15 | 6 | 7.5 | FB8001 | 10000430 | — |
| K01-170 | 170 | 190 | 40 | 40 | 10 | 5 | 5 | FB8001 | 10000434 | — |
| K01-180 | 180 | 200 | 40 | 40 | 10 | 5 | 5 | FB8001 | 10000435 | — |
| K01-180/1 | 180 | 210 | 60 | 60 | 15 | 7.5 | 7.5 | FB8001 | 10000439 | — |
| K01-190 | 190 | 220 | 42 | 42 | 15 | 5.5 | 7.5 | FB8001 | 10000447 | — |
| K01-200 | 200 | 220 | 40 | 40 | 10 | 5 | 5 | FB8001 | 10000456 | — |
| K01-200/1 | 200 | 230 | 60 | 60 | 15 | 7.5 | 7.5 | FB8001 | 10000460 | — |
| K01-210 | 210 | 240 | 50 | 50 | 15 | 6.9 | 7.5 | FB8001 | 10000466 | — |
| K01-215 | 215 | 245 | 41 | 41 | 15 | - | 7.5 | FB8001 | 10000473 | — |
| K01-220 | 220 | 240 | 40 | 40 | 10 | 5 | 5 | FB8001 | 10000475 | — |
| K01-230 | 230 | 260 | 58 | 58 | 15 | 7.25 | 7.5 | FB8001 | 10000477 | — |
| K01-240 | 240 | 270 | 60 | 60 | 15 | 7.5 | 7.5 | FB8001 | 10000480 | — |
| K01-240/1 | 240 | 260 | 46 | 46 | 10 | 5 | 5 | FB8001 | 10000485 | — |
| K01-250 | 250 | 270 | 42 | 42 | 10 | 6 | 5 | FB8001 | 10000486 | — |
| K01-260 | 260 | 290 | 60 | 60 | 15 | 7.5 | 7.5 | FB8001 | 10000488 | — |
| K01-300 | 300 | 330 | 60 | 60 | 15 | 7.5 | 7.5 | FB8001 | 10000498 | — |
| K01-310 | 310 | 340 | 60 | 60 | 15 | 7.5 | 7.5 | FB8001 | 10000502 | — |
| K01-320 | 320 | 350 | 60 | 60 | 15 | 7.5 | 7.5 | FB8001 | 10000503 | — |
| K01-320/1 | 320 | 360 | 46 | 46 | 20 | - | 10 | FB8001 | 10000508 | — |
| K01-330 | 330 | 360 | 60 | 60 | 15 | 7.5 | 7.5 | FB8001 | 10000511 | — |
| K01-360 | 360 | 390 | 60 | 60 | 15 | 7.5 | 7.5 | FB8001 | 10000514 | — |
| K01-360/1 | 360 | 400 | 55 | 55 | 20 | 7.5 | 10 | FB8001 | 10000515 | — |
| K01-370 | 370 | 400 | 55 | 55 | 15 | 7.5 | 7.5 | FB8001 | 10000524 | — |
| K01-400 | 400 | 440 | 65 | 65 | 20 | 9 | 10 | FB8001 | 10000525 | — |
| K01-400/1 | 400 | 430 | 46 | 46 | 15 | 5.5 | 7.5 | FB8001 | 10000531 | — |
| K01-420 | 420 | 460 | 80 | 80 | 20 | 10 | 10 | FB8001 | 10000534 | — |
| K01-440 | 440 | 480 | 68 | 68 | 20 | 9.5 | 10 | FB8001 | 10000538 | — |
| K01-450 | 450 | 490 | 65 | 65 | 20 | 8 | 10 | FB8001 | 10000540 | — |
