Hidrolik Boğaz Sızdırmazlık Elemanları
K29
Ön Basınç Ringi
- Malzeme
- PU POM
- Kodu
- PU9201 PM9901
- Basınç (max) bar
- 400
- Sıcaklık (max) °C
- -40/+100
- Kayma Hızı (max)- m/s
- 0.5
Avantajları
- Hidrodinamik basınç problemi yaşanmaması
- Statik ve dinamik sürtünme kuvvetlerinin düşük olması
- ISO 7425/2 kanallarına uygun tasarım
- Şok basınçlarda mükemmel sistem koruması
- Aşınma dayanımının yüksek olması
Uygulama Alanları
- Orta ve ağır hizmet silindirleri
- Presler
- İş makineleri sektörü
- Mobil silindirler
- Vinçler

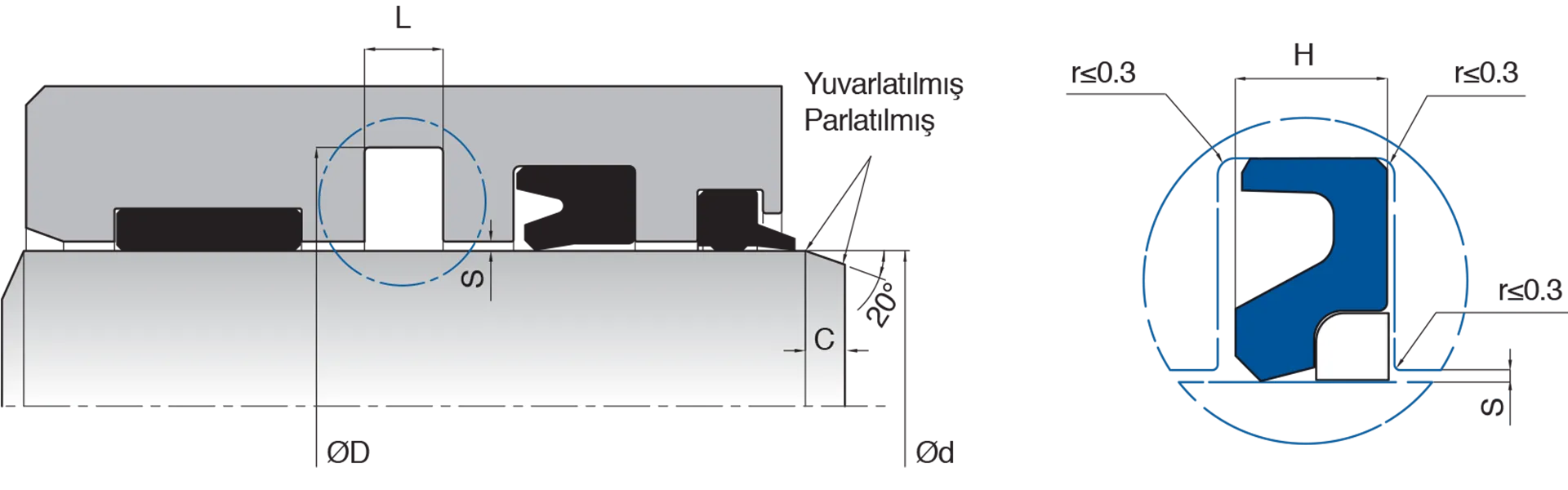

Teknik Çizim
Ölçü Tablosu
53 ölçü · Kod veya ölçü ile filtreleyin
Akma boşluğu (S) tablosu için tıklayınız
53 sonuç
| Kod | d (f8) | D (H10) | L (+0.2/-0) | H | C | MALZEME | KASTAŞ KOD | |
|---|---|---|---|---|---|---|---|---|
| K29-030 | 30 | 40.7 | 4.2 | 3.9 | 5.5 | PU9201 | 10014962 | — |
| K29-050/3 PU | 2 | 2.616 | 0.247 | 0.227 | 0.236 | PU9201 | 10051881 | — |
| K29-032 | 32 | 42.7 | 4.2 | 3.9 | 5.5 | PU9201 | 10014963 | — |
| K29-057 PU | 2.25 | 2.674 | 0.166 | 0.154 | 0.217 | PU9201 | 10051883 | — |
| K29-063/1 PU | 2.5 | 2.924 | 0.166 | 0.154 | 0.217 | PU9201 | 10051884 | — |
| K29-035 | 35 | 45.7 | 4.2 | 3.9 | 5.5 | PU9201 | 10014964 | — |
| K29-063/2 PU | 2.5 | 3.116 | 0.247 | 0.227 | 0.236 | PU9201 | 10051886 | — |
| K29-036 | 36 | 46.7 | 4.2 | 3.9 | 5.5 | PU9201 | 10014965 | — |
| K29-069 PU | 2.75 | 3.366 | 0.247 | 0.227 | 0.236 | PU9201 | 10051932 | — |
| K29-038 | 38 | 48.7 | 4.2 | 3.9 | 5.5 | PU9201 | 10014966 | — |
| K29-040 | 40 | 55.5 | 6.3 | 5.8 | 5.5 | PU9201 | 10014967 | — |
| K29-076 PU | 3 | 3.616 | 0.247 | 0.227 | 0.236 | PU9201 | 10051887 | — |
| K29-088 PU | 3.5 | 4.116 | 0.247 | 0.227 | 0.236 | PU9201 | 10051888 | — |
| K29-040/1 | 40 | 50.7 | 4.2 | 3.9 | 5.5 | PU9201 | 10014968 | — |
| K29-045 | 45 | 60.5 | 6.3 | 5.8 | 5.5 | PU9201 | 10014970 | — |
| K29-101/1 PU | 4 | 4.616 | 0.247 | 0.227 | 0.236 | PU9201 | 10051889 | — |
| K29-045/1 | 45 | 55.7 | 4.2 | 3.9 | 5.5 | PU9201 | 10014972 | — |
| K29-114 PU | 4.5 | 5.116 | 0.247 | 0.227 | 0.236 | PU9201 | 10051890 | — |
| K29-048 | 48 | 63.5 | 6.3 | 5.8 | 5.5 | PU9201 | 10014973 | — |
| K29-120/1 PU | 4.75 | 5.366 | 0.247 | 0.227 | 0.236 | PU9201 | 10051891 | — |
| K29-050 | 50 | 65.5 | 6.3 | 5.8 | 5.5 | PU9201 | 10014974 | — |
| K29-127 PU | 5 | 5.616 | 0.247 | 0.227 | 0.236 | PU9201 | 10051892 | — |
| K29-139 PU | 5.5 | 6.116 | 0.247 | 0.227 | 0.236 | PU9201 | 10051893 | — |
| K29-050/1 | 50 | 60.7 | 4.2 | 3.9 | 5.5 | PU9201 | 10014976 | — |
| K29-152 PU | 6 | 6.616 | 0.247 | 0.227 | 0.236 | PU9201 | 10051894 | — |
| K29-055 | 55 | 70.5 | 6.3 | 5.8 | 5.5 | PU9201 | 10014977 | — |
| K29-055/1 | 55 | 70.1 | 6.3 | 5.8 | 5.5 | PU9201 | 10014979 | — |
| K29-056 | 56 | 71.1 | 6.3 | 5.8 | 5.5 | PU9201 | 10014980 | — |
| K29-056/1 | 56 | 71.5 | 6.3 | 5.8 | 5.5 | PU9201 | 10014981 | — |
| K29-060 | 60 | 75.5 | 6.3 | 5.8 | 5.5 | PU9201 | 10014982 | — |
| K29-060/1 | 60 | 75.1 | 6.3 | 5.8 | 5.5 | PU9201 | 10014984 | — |
| K29-060/2 | 2,376 | 2,97 | 0,248 | 0,2283 | 0,2165 | PU9201 | 10014985 | — |
| K29-063 | 63 | 78.5 | 6.3 | 5.8 | 5.5 | PU9201 | 10014986 | — |
| K29-065 | 65 | 80.5 | 6.3 | 5.8 | 5.5 | PU9201 | 10014987 | — |
| K29-070 | 70 | 85.5 | 6.3 | 5.8 | 6 | PU9201 | 10014989 | — |
| K29-070/1 | 70 | 85.1 | 6.3 | 5.8 | 6 | PU9201 | 10014992 | — |
| K29-075 | 75 | 90.5 | 6.3 | 5.8 | 6 | PU9201 | 10014993 | — |
| K29-075/1 | 75 | 90.1 | 6.3 | 5.8 | 6 | PU9201 | 10014995 | — |
| K29-078 | 78 | 93.1 | 6.3 | 5.8 | 6 | PU9201 | 10014996 | — |
| K29-080 | 80 | 95.5 | 6.3 | 5.8 | 6 | PU9201 | 10014997 | — |
| K29-080/2 | 80 | 95.1 | 6.3 | 5.8 | 6 | PU9201 | 10015001 | — |
| K29-085 | 85 | 100.5 | 6.3 | 5.8 | 6 | PU9201 | 10015002 | — |
| K29-090 | 90 | 105.5 | 6.3 | 5.8 | 6 | PU9201 | 10015005 | — |
| K29-095 | 95 | 110.5 | 6.3 | 5.8 | 6 | PU9201 | 10015007 | — |
| K29-100 | 100 | 115.5 | 6.3 | 5.8 | 6 | PU9201 | 10015009 | — |
| K29-105 | 105 | 120.5 | 6.3 | 5.8 | 6 | PU9201 | 10015011 | — |
| K29-110 | 110 | 125.5 | 6.3 | 5.8 | 6 | PU9201 | 10015013 | — |
| K29-115 | 115 | 130.5 | 6.3 | 5.8 | 6 | PU9201 | 10015015 | — |
| K29-120 | 120 | 135.5 | 6.3 | 5.8 | 6 | PU9201 | 10015017 | — |
| K29-125 | 125 | 140.5 | 6.3 | 5.8 | 6 | PU9201 | 10015019 | — |
| K29-130 | 130 | 145.5 | 6.3 | 5.8 | 6 | PU9201 | 10015022 | — |
| K29-140 | 140 | 155.5 | 6.3 | 5.8 | 6 | PU9201 | 10015026 | — |
| K29-150 | 150 | 165.5 | 6.3 | 5.8 | 6 | PU9201 | 10015027 | — |
