Hidrolik Boğaz Sızdırmazlık Elemanları
K709
Boğaz Keçesi
- Malzeme
- PTFE NBR
- Kodu
- PT6003 NB7001
- Basınç (max) bar
- 400
- Sıcaklık (max) °C
- -30/+105
- Kayma Hızı (max)- m/s
- 15.0
Avantajları
- Düşük sürtünme, yüzeye yapışmama özelliği
- İyi statik ve dinamik sızdırmazlık
- Uzun hizmet ömrü
- Yüksek akma dayanımı
- Hidrodinamik basıncı engelleyen tasarım
- Yüksek hız ve frekanslarda çalışabilme
- ISO 7425-2 kanala uygun tasarım
Uygulama Alanları
- Vinçler
- Enjeksiyon tezgahları
- Hidrolik pres silindirleri
- Forkliftler
- İş makineleri sektörü
- Servo silindirler
- Hidrolik kırıcılar
- Rüzgar türbinleri
- Otomotiv sektörü

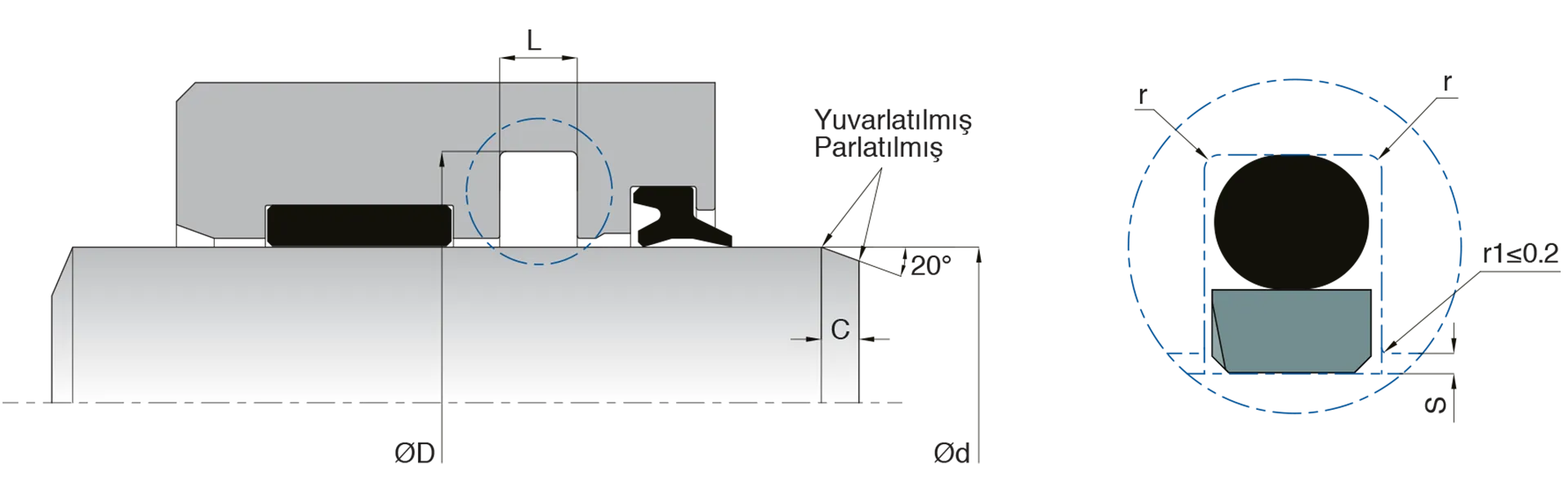

Teknik Çizim
Ölçü Tablosu
48 ölçü · Kod veya ölçü ile filtreleyin
48 sonuç
| Kod | d (f8) | D (H9) | L (+0.2/-0) | r | C | O-Ring | MALZEME | KASTAŞ KOD | |
|---|---|---|---|---|---|---|---|---|---|
| K709-004 | 4 | 8.9 | 2.2 | 0.4 | 3 | 5.28x1.78 | PT6003 | 10028026 | — |
| K709-010 | 10 | 14.9 | 2.2 | 0.4 | 3 | 11.11x1.78 | PT6003 | 10028029 | — |
| K709-014 | 14 | 21.3 | 3.2 | 0.6 | 4.5 | 15.88x2.62 | PT6003 | 10028030 | — |
| K709-022 | 22 | 29.3 | 3.2 | 0.6 | 4.5 | 25.07x2.62 | PT6003 | 10028032 | — |
| K709-028 | 28 | 38.7 | 4.2 | 1 | 6 | 31.34x3.53 | PT6003 | 10028034 | — |
| K709-030 | 30 | 40.7 | 4.2 | 1 | 6 | 34.52x3.53 | PT6003 | 10028035 | — |
| K709-032 | 32 | 42.7 | 4.2 | 1 | 6 | 36.10x3.53 | PT6003 | 10028036 | — |
| K709-035 | 35 | 45.7 | 4.2 | 1 | 6 | 37.69x3.53 | PT6003 | 10028037 | — |
| K709-035/1 | 35 | 42.3 | 3.2 | 0.6 | 4.5 | 36.17x2.62 | PT6003 | 10028038 | — |
| K709-038 | 38 | 48.7 | 4.2 | 1 | 6 | 41.28x3.53 | PT6003 | 10028039 | — |
| K709-040 | 40 | 50.7 | 4.2 | 1 | 6 | 44.45x3.53 | PT6003 | 10028041 | — |
| K709-042/1 | 42 | 57.1 | 6.3 | 1.3 | 8 | 47x5.33 | PT6003 | 10028045 | — |
| K709-045 | 45 | 60.1 | 6.3 | 1.3 | 8 | 50.16x5.33 | PT6003 | 10028047 | — |
| K709-045/1 | 45 | 55.7 | 4.2 | 1 | 6 | 49.21x3.53 | PT6003 | 10028048 | — |
| K709-048 | 48 | 63.1 | 6.3 | 1.3 | 8 | 53.34x5.33 | PT6003 | 10028050 | — |
| K709-050 | 50 | 65.1 | 6.3 | 1.3 | 8 | 53.34x5.33 | PT6003 | 10028051 | — |
| K709-050/1 | 50 | 60.7 | 4.2 | 1 | 6 | 53.57x3.53 | PT6003 | 10028052 | — |
| K709-052 | 52 | 62.7 | 4.2 | 1 | 6 | 55.56x3.53 | PT6003 | 10028054 | — |
| K709-055/1 | 55 | 70.1 | 6.3 | 1.3 | 8 | 59.70x5.33 | PT6003 | 10028058 | — |
| K709-056 | 56 | 71.1 | 6.3 | 1.3 | 8 | 59.70x5.33 | PT6003 | 10028059 | — |
| K709-060 | 60 | 70.7 | 4.2 | 1 | 6 | 63.50x3.53 | PT6003 | 10028060 | — |
| K709-063 | 63 | 78.1 | 6.3 | 1.3 | 8 | 66.04x5.33 | PT6003 | 10028064 | — |
| K709-065 | 65 | 80.1 | 6.3 | 1.3 | 8 | 69.22x5.33 | PT6003 | 10028065 | — |
| K709-070 | 70 | 85.1 | 6.3 | 1.3 | 8 | 75.57x5.33 | PT6003 | 10028066 | — |
| K709-075 | 75 | 90.1 | 6.3 | 1.3 | 8 | 79.77x5.33 | PT6003 | 10028068 | — |
| K709-080/1 | 80 | 95.1 | 6.3 | 1.3 | 8 | 85.09x5.33 | PT6003 | 10028071 | — |
| K709-090/1 | 90 | 105.1 | 6.3 | 1.3 | 8 | 94.62x5.33 | PT6003 | 10028079 | — |
| K709-100 | 100 | 115.1 | 6.3 | 1.3 | 8 | 107.32x5.33 | PT6003 | 10028081 | — |
| K709-110 | 110 | 125.1 | 6.3 | 1.3 | 8 | 116.84x5.33 | PT6003 | 10028082 | — |
| K709-125 | 125 | 140.1 | 6.3 | 1.3 | 8 | 126.57x5.33 | PT6003 | 10028083 | — |
| K709-140 | 140 | 155.1 | 6.3 | 1.3 | 8 | 146.05x5.33 | PT6003 | 10028086 | — |
| K709-150 | 150 | 165.1 | 6.3 | 1.3 | 8 | 151.77x5.33 | PT6003 | 10028088 | — |
| K709-160 | 160 | 175.1 | 6.3 | 1.3 | 8 | 170.82x5.33 | PT6003 | 10028090 | — |
| K709-180 | 180 | 200.5 | 8.1 | 1.8 | 10.5 | 187.3x6.99 | PT6003 | 10028093 | — |
| K709-180/1 | 180 | 195.1 | 6.3 | 1.3 | 8 | 185.40x5.33 | PT6003 | 10028094 | — |
| K709-190 | 190 | 205.1 | 6.3 | 1.3 | 8 | 196.22x5.33 | PT6003 | 10028096 | — |
| K709-200 | 200 | 220.5 | 8.1 | 1.8 | 10.5 | 208.92x6.99 | PT6003 | 10028097 | — |
| K709-220 | 220 | 235.1 | 6.3 | 1.8 | 10.5 | 221.62x5.33 | PT6003 | 10028098 | — |
| K709-220/1 | 220 | 240.5 | 8.1 | 1.8 | 10.5 | 227.97x6.99 | PT6003 | 10028099 | — |
| K709-250 | 250 | 270.5 | 8.1 | 1.8 | 10.5 | 253.57x6.99 | PT6003 | 10028101 | — |
| K709-290 | 290 | 314 | 8.1 | 1.8 | 10.5 | 304.17x6.99 | PT6003 | 10028104 | — |
| K709-300 | 300 | 324 | 8.1 | 1.8 | 10.5 | 304.17x6.99 | PT6003 | 10028105 | — |
| K709-310 | 310 | 334 | 8.1 | 1.8 | 10.5 | 316.87x6.99 | PT6003 | 10028107 | — |
| K709-320 | 320 | 344 | 8.1 | 1.8 | 10.5 | 329.57x6.99 | PT6003 | 10028108 | — |
| K709-350 | 350 | 370.5 | 8.1 | 1.8 | 10.5 | 354.9x6.99 | PT6003 | 10028109 | — |
| K709-350/1 | 350 | 374 | 8.1 | 1.8 | 10.5 | 354.9x6.99 | PT6003 | 10028111 | — |
| K709-360 | 360 | 384 | 8.1 | 1.8 | 10.5 | 367.67x6.99 | PT6003 | 10028112 | — |
| K709-370 | 370 | 394 | 8.1 | 1.8 | 10.5 | 380.37x6.99 | PT6003 | 10028113 | — |
